Fluid Mechanics Lab

• Equipment Type
• Hydraulic Bench Apparatus

• Accuracy
• 0.5% of reading

• Application
• Laboratory, Educational, Research

• Capacity (Ltr)
• 40 Litres

• Control Type
• Manual control valves

• Dimension (L*W*H)
• 1200 mm x 700 mm x 900 mm

• Display Type
• Graduated Scale & Digital Timer

• Equipment Materials
• Stainless Steel (SS), Aluminum, Powder Coated Mild Steel

• Features
• Movable with castor wheels, corrosion-resistant, easy drainage system, self-contained water recirculation

• Glass Type
• Acrylic (for measuring tank window)

• Material
• Stainless Steel & Acrylic

• Power
• 230V AC, 50 Hz, 0.5 HP Motor

• Power Supply
• Single phase, 230V AC

• Shape
• Rectangular

• Speed Range
• Fixed, single speed

• Temperature Resistance
• Up to 80C

• Type
• Other, Hydraulic Bench

• Voltage
• 220-230V AC

• Equipment Type

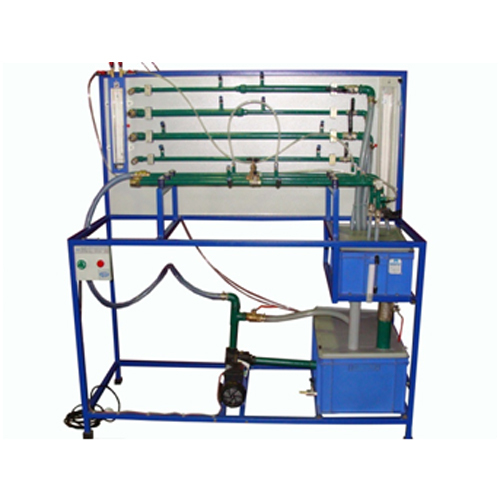

• Bernoullis Theorem Apparatus

• Accuracy
• 0.5 mm water gauge

• Application
• Demonstration of Bernoullis Principle in Fluid Mechanics

• Capacity (Ltr)
• 40-50 Liters (Supply Tank)

• Control Type
• Manual Control Valve

• Dimension (L*W*H)
• 1000 x 400 x 600 mm (approx.)

• Display Type
• Manometer (Tube Scale)

• Equipment Materials
• Acrylic / Stainless Steel and Brass with PVC piping

• Features
• Transparent flow section, multiple piezometer tubes, leak-proof construction, educational scale

• Glass Type
• Acrylic transparent tubes

• Material
• Acrylic, Stainless Steel, Brass, PVC

• Power
• Not required (Hydraulic / Manual)

• Shape
• Rectangular base with converging-diverging tube

• Temperature Resistance
• Up to 60C

• Type
• Other, Educational Laboratory Apparatus

• Equipment Type
• Lab Air Purification System

• Accuracy
• HEPA Filter 99.97% up to 0.3 micron

• Application
• Laboratory, Pharmaceutical, Microbiology, Research

• Capacity (Ltr)
• Suitable for 2-3 persons working area

• Control Type
• Manual Switch Control Panel

• Dimension (L*W*H)
• 1200 x 600 x 600 mm

• Display Type
• No Display

• Equipment Materials
• MS Powder Coated & Stainless Steel

• Features
• HEPA Filter, Pre-Filter, UV Light, Fluorescent Light, Low Noise Level

• Glass Type
• Acrylic Transparent Front Panel

• Material
• Stainless Steel and Mild Steel

• Power
• 220V AC, 50Hz

• Power Supply
• Single Phase

• Shape
• Rectangular

• Speed Range
• Variable 0.3 - 0.5 m/s Air Flow

• Temperature Resistance
• Upto 50C

• Type
• Other, Horizontal Laminar Flow Cabinet

• Voltage
• 220 V

• Equipment Type
• Laboratory Educational Equipment

• Accuracy
• 1% of Full Scale (Manometers)

• Application
• Determination of Head Losses in Pipes and Fittings, Educational/Research Laboratory Use

• Capacity (Ltr)
• 30 Litres Storage Tank

• Control Type
• Manual Valve Control

• Dimension (L*W*H)
• 1000 x 450 x 1200 mm (approx)

• Display Type
• Analog Manometer Scale

• Equipment Materials
• Powder Coated Mild Steel with Stainless Steel/PVC Fittings

• Features
• Corrosion Resistant, Easy to Use, Mobile on Wheels

• Glass Type
• Borosilicate Glass Manometer Tubes

• Material
• Stainless Steel, PVC, Acrylic (Glass Section)

• Power
• 230V AC, 50 Hz, 0.5 HP Motor

• Power Supply
• 230V AC, 50Hz, Single Phase

• Shape
• Rectangular Frame

• Temperature Resistance
• Up to 70C

• Type
• Other, Hydraulic Laboratory Apparatus

• Voltage
• 230 Volts AC

• Equipment Type
• Fluid Mechanics Laboratory Apparatus

• Accuracy
• 1 mm water level measurement

• Application
• Hydraulics Laboratory Experiments, Fluid mechanics, Educational demonstration

• Capacity (Ltr)
• 35 litres

• Control Type
• Manual

• Dimension (L*W*H)
• 1200 mm x 300 mm x 450 mm (approx)

• Display Type
• Graduated scale for water level

• Equipment Materials
• Stainless steel and acrylic

• Features
• Interchangeable notches and weir plates, portable, corrosion-resistant, easy to clean

• Glass Type
• Acrylic transparent panel

• Material
• Stainless Steel, Acrylic

• Power
• Not required (manual operation)

• Shape
• Rectangular channel

• Temperature Resistance
• Standard laboratory ambient

• Type
• Other, Weirs And Notches Apparatus

• Equipment Type
• Laboratory Apparatus

• Accuracy
• 1 mm (for depth measurement)

• Application
• Fluid Mechanics, Open Channel Flow Studies

• Capacity (Ltr)
• 100 Ltr (Supply Tank)

• Control Type
• Manual Tilting Adjustment

• Dimension (L*W*H)
• 2.5 m x 0.3 m x 0.45 m (approx)

• Display Type
• Analogue (Scale and Pointer)

• Equipment Materials
• Powder Coated Steel Frame, Transparent Perspex Channel

• Features

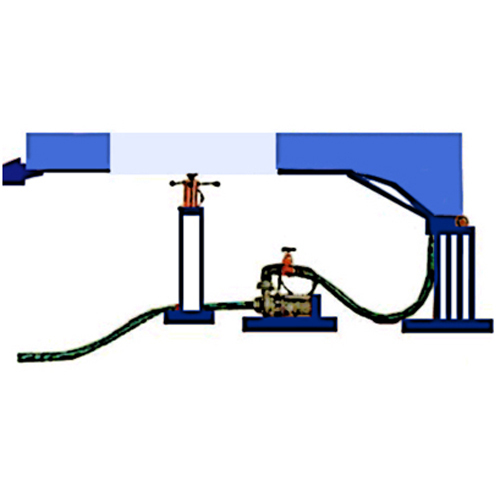

• Tilting Flume with Adjustable Slope, Compact and Portable Design, Clear Visibility

• Glass Type
• Transparent Acrylic Sheet

• Material
• Acrylic (Channel), Stainless Steel (Fittings/fasteners)

• Power
• 0.5 HP Electric Motor

• Power Supply
• Single Phase AC

• Shape
• Rectangular Channel

• Speed Range
• Variable (Pump Speed Control)

• Temperature Resistance
• Up to 50C

• Type
• Other, Hydraulic Engineering Laboratory Apparatus

• Voltage
• 220-240V AC, 50Hz

• Equipment Type
• Experimental Test Rig

• Accuracy
• 1% of FSD

• Application
• Fluid Mechanics Laboratory, Flow Measurement Study

• Capacity (Ltr)
• 35 Litres

• Control Type
• Manual Flow Control Valve

• Dimension (L*W*H)
• 1100 mm x 600 mm x 1000 mm

• Display Type
• Direct Scale Markings (Graduated)

• Equipment Materials
• Mild Steel (Powder Coated Frame), Stainless Steel (Piping and Fittings)

• Features
• Corrosion Resistance, Durable, High Accuracy, Easy Operation

• Glass Type
• Borosilicate Glass Tube

• Material
• Stainless Steel, Glass, Mild Steel

• Power
• 0.5 HP Electric Motor

• Power Supply
• 230 V, 50 Hz AC Mains

• Shape
• Rectangular Frame

• Temperature Resistance
• Up to 80C

• Type
• Other, Bench Top Rotameter Test Rig

• Voltage
• 220 V AC, Single Phase

• Equipment Type
• Aerodynamics Laboratory Equipment

• Accuracy
• 1% in air speed measurement

• Application
• Used for Aerodynamic Study, Flow Visualization, Educational & Research Purposes

• Control Type
• Digital Speed Controller

• Dimension (L*W*H)
• 1500 x 600 x 1200 mm

• Display Type
• Digital Display

• Equipment Materials
• Mild Steel Structure with Perspex Chamber

• Features
• Transparent section, Flow visualization, Variable air flow

• Glass Type
• Perspex/Acrylic Observation Window

• Material
• Stainless Steel & Acrylic

• Power
• 1 HP Motor

• Power Supply
• Single Phase

• Shape
• Rectangular

• Speed Range
• Adjustable 0-30 m/s (blower speed)

• Temperature Resistance
• Up to 80C

• Type
• Other, Wind Tunnel Apparatus

• Voltage
• 220-240 V AC, 50 Hz
