Pump Test Rig

• Equipment Type
• Centrifugal Blower Test Rig

• Accuracy
• 1%

• Application
• Performance evaluation and efficiency measurement of centrifugal fans/blowers

• Automation Grade
• Semi-automatic/automatic

• Capacity
• 0.25 HP - 1 HP (blowers of different capacities available)

• Control Mode
• Manual/Automatic

• Display Type
• Analog/Digital

• Features
• Sturdy construction, transparent ducting, mobile frame, data acquisition attachment (optional)

• Frequency
• 50 Hz

• Gas Pressure
• Atmospheric

• Humidity
• Ambient

• Interface Type
• Panel mount/optional digital interface

• Machine Weight
• Around 100 Kg

• Max Height
• Approx. 1 meter

• Measuring Range
• Pressure: 0 - 150 mm WC, Airflow: 0-1000 m3/hr

• Mounting Type
• Floor mounted

• Number of Specimens
• Single

• Operating Voltage
• 230 V AC

• Port Size
• Inlet/Outlet: 50 mm to 100 mm (customizable)

• Power Supply
• 230 V AC, 50 Hz

• Resolution
• 0.01

• Response Time
• <2 seconds

• Specimen Size
• Standard

• Temperature
• Ambient to 50C

• Test Range
• 0 - 1000 m3/hr

• Test Speed
• Variable up to 3000 RPM

• Usage
• Educational laboratory/industrial testing

• Equipment Type
• Universal Water Pump Test Rig

• Accuracy
• 1%

• Application
• Performance testing of water pumps

• Automation Grade
• Manual

• Capacity
• Up to 2 HP Motor

• Control Mode
• Manual

• Display Type
• Analog Gauges

• Features
• Rust proof, robust, easy operation

• Frequency
• 50 Hz

• Hardness
• Mild Steel/SS Frame

• Humidity
• Up to 85% RH

• Interface Type
• Manual Controls

• Machine Weight
• Approx. 120 kg

• Max Height
• 1.1 m

• Measuring Range
• 0-100 psi Pressure / 0-100 LPM Flow

• Mounting Type
• Floor Mounted

• Number of Specimens
• 1 Pump per Test

• Operating Voltage
• 220-240V AC

• Port Size
• 1 Inch Inlet/Outlet

• Power Supply
• 220V AC, 50Hz

• Resolution
• 0.1 LPM / 0.1 psi

• Response Time
• <2 Seconds

• Specimen Size
• Standard Pump Housing

• Temperature
• Ambient to 50C

• Test Range
• 0-20 LPM (Litres Per Minute)

• Test Speed
• Variable, up to 2900 RPM

• Test Width
• 450 mm

• Usage
• Engineering/Technical Institutions

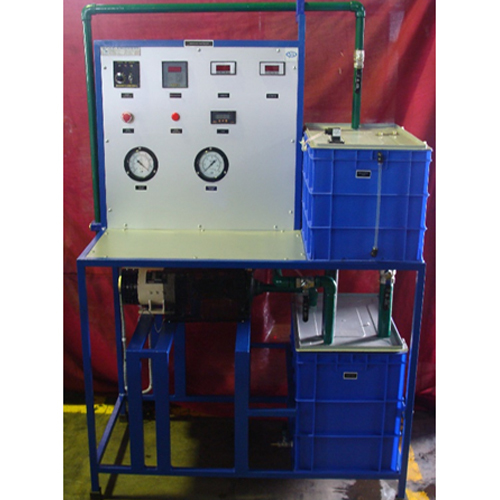

• Accuracy
• 1% for flow and pressure readings

• Application
• Hydraulic laboratory practical, pump performance study, fluid mechanics experiments

• Automation Grade
• Semi-automatic

• Capacity
• 1 HP (standard); customizable as per requirement

• Control Mode
• Manual and Digital

• Display Type
• Digital panel meters and analog gauges

• Features
• Durable, corrosion resistant, easy to operate, transparent pump casing for visualization

• Frequency
• 50 Hz

• Hardness
• Mild Steel fabricated, Painted; Transparent acrylic components

• Humidity
• Up to 95% RH

• Interface Type
• Direct control panel with digital/analog indication

• Machine Weight
• Approx. 120 kg

• Max Height
• Head up to 40 m

• Measuring Range
• Flow: 0-50 LPM; Pressure: 0-4 kg/cm2

• Mounting Type
• Floor mounted on MS powder coated frame

• Number of Specimens
• Single pump specimen per test

• Operating Voltage
• 230 V AC

• Port Size
• Suction - 25 mm, Delivery - 25 mm

• Power Supply
• 230 V AC, 50 Hz, Single Phase

• Resolution
• 0.1 LPM (flow), 0.01 kg/cm2 (pressure)

• Response Time
• <2 seconds for measurements

• Specimen Size
• Standard laboratory type centrifugal pump

• Temperature
• Ambient to 50C

• Test Range
• 0-50 LPM (for flow), 0-4 kg/cm2 (for head)

• Test Speed
• Variable up to 2900 rpm

• Usage
• Educational and research laboratory testing of pump characteristics

• Equipment Type
• Universal Oil Pump Test Rig

• Accuracy
• 1% of full scale

• Application
• Testing of automotive oil pumps

• Automation Grade
• Semi-Automatic

• Capacity
• Up to 20 LPM oil capacity

• Control Mode
• Manual/Automatic

• Display Type
• Digital Panel Meter

• Features
• Robust Frame, Flow & Pressure Measurement, Transparent Reservoir, Low Noise Operation

• Frequency
• 50 Hz

• Gas Pressure
• Not applicable (liquid system)

• Hardness
• Mild steel with anti-corrosive coating

• Humidity
• Up to 90% RH (Non-condensing)

• Interface Type
• Analog/Digital output

• Machine Weight
• Approx. 120 kg

• Max Height
• 1.2 meters

• Measuring Range
• 0-20 LPM

• Mounting Type
• Floor-standing

• Number of Specimens
• One at a time

• Operating Voltage
• 230 V AC

• Port Size
• 1/2 BSP

• Power Supply
• 230 V AC, 50 Hz

• Resolution
• 0.1 LPM

• Response Time
• < 2 seconds

• Specimen Size
• Standard automotive oil pump sizes

• Temperature
• Ambient to 60C

• Test Range
• Oil flow rate 0-20 LPM

• Test Speed
• Variable up to 3000 RPM

• Test Stroke
• 0-150 mm

• Test Width
• 400 mm

• Usage
• Quality Control, R&D Laboratories

• Equipment Type

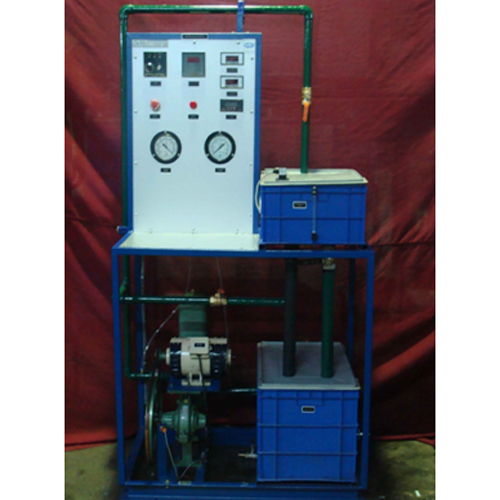

• Reciprocating Pump Test Rig

• Accuracy
• 1% of FSD

• Application
• To study and analyze the performance of a reciprocating pump

• Automation Grade
• Semi-automatic

• Capacity
• 1/4 HP motor, up to 0.5 HP available

• Control Mode
• Manual and panel operated

• Display Type
• Analog/digital (as per model)

• Features
• Transparent delivery tank, self-contained unit, sturdy construction

• Frequency
• 50 Hz

• Humidity
• Up to 85% RH

• Interface Type
• Analog gauges and panel controls

• Machine Weight
• Approx. 60-80 kg

• Max Height
• Approximately 1100 mm

• Measuring Range
• Suction and delivery head up to 4 meters

• Mounting Type
• Floor mounted

• Number of Specimens
• Single pump delivered per test

• Operating Voltage
• 230 V

• Port Size
• 1/2 inch BSP

• Power Supply
• 230 V AC, 50 Hz, single phase

• Resolution
• Up to 0.1 liter/min

• Response Time
• <2 seconds

• Specimen Size
• Standard reciprocating pump

• Temperature
• Ambient up to 40C

• Test Range
• Up to 10 lpm discharge rate

• Test Speed
• Variable, up to 120 strokes/min

• Test Stroke
• 30 to 50 mm (adjustable)

• Usage
• Laboratory, educational and research

• Equipment Type
• Hydraulic Turbine Test Rig

• Accuracy
• 0.5%

• Application
• Hydraulic Laboratory / Educational & Research Testing

• Automation Grade
• Semi-Automatic

• Capacity
• Up to 3 kW

• Control Mode
• Manual and Automatic

• Display Type
• Digital Panel Meter

• Features
• Transparent Casing, Portable Frame, Direct Manometer, Digital Readout

• Frequency
• 50 Hz

• Gas Pressure
• N/A (Water-based system)

• Hardness
• Mild Steel Structure with Powder Coating

• Interface Type
• Analog & Digital Sensors

• Machine Weight
• Approximately 180 kg

• Max Height
• 1100 mm

• Measuring Range
• 0 - 100 lpm (water flow)

• Mounting Type
• Floor Mounted

• Number of Specimens
• 1 (Single Turbine Unit)

• Operating Voltage
• 230 V AC

• Port Size
• 1 inch inlet and outlet

• Power Supply
• 230 V AC, 50 Hz

• Resolution
• 0.1 lpm

• Response Time
• <2 seconds

• Specimen Size
• Rotor diameter 100 mm

• Temperature
• Room temperature to 45C

• Test Range
• 0.5 kW - 3 kW

• Test Speed
• Up to 1500 rpm

• Test Stroke
• 75 mm

• Test Width
• 400 mm

• Usage
• Turbine Performance & Efficiency Testing

• Accuracy
• 1% of full scale

• Application

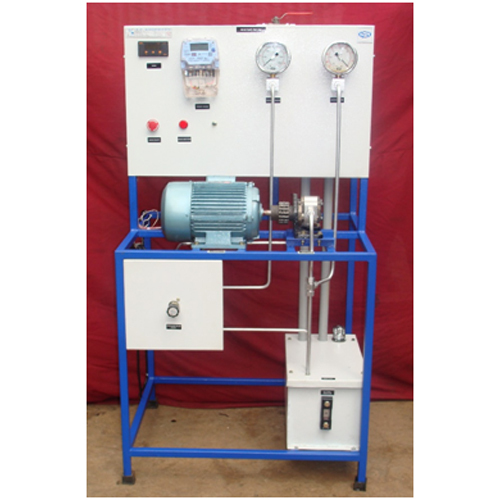

• Determination of rotary gear pump characteristics, pump performance testing

• Automation Grade
• Semi-automatic

• Capacity
• Up to 2 HP motor

• Control Mode
• Manual and automatic both

• Display Type
• Analog/Digital meters

• Features
• Transparent acrylic tank, prime mover with speed controller, pressure and vacuum gauges, flow measurement system, sturdy structure

• Frequency
• 50 Hz

• Hardness
• NA (not applicable)

• Humidity
• Up to 90% RH (non-condensing)

• Interface Type
• Panel mounted with switches

• Machine Weight
• Approx. 75 kg

• Max Height
• 1200 mm

• Measuring Range
• 0-16 kg/cm2 (pressure gauge)

• Mounting Type
• Floor Standing

• Number of Specimens
• Single pump per test

• Operating Voltage
• 220 V

• Port Size
• 1 inch (Inlet/Outlet)

• Power Supply
• 220V AC, 50 Hz

• Resolution
• 0.01 LPM (flowmeter)

• Response Time
• <2 seconds

• Specimen Size
• Standard gear pump sizes

• Temperature
• Ambient to 60C

• Test Range
• 0.5 to 12 LPM (flow rate)

• Test Speed
• Variable up to 1500 RPM

• Test Stroke
• Up to 100 mm

• Test Width
• 300 mm

• Usage
• Lab testing, performance evaluation

• Equipment Type
• Centrifugal Pump Test Rig

• Accuracy
• 1%

• Application
• Fluid mechanics laboratory experiments, Performance evaluation

• Automation Grade
• Semi-automatic

• Capacity
• 0.5 HP centrifugal pump

• Control Mode
• Manual/Automatic

• Display Type
• Analog/Digital meters

• Features
• Transparent Sump, Control valves, Flow control arrangement, Clear piping

• Frequency
• 50 Hz

• Humidity
• Up to 90% RH

• Interface Type
• Manual controls

• Machine Weight
• Approx. 60-80 kg

• Max Height
• 1200 mm

• Measuring Range
• Flow: 0-2500 LPH, Pressure: 0-2 kg/cm2

• Mounting Type
• Floor mounted

• Number of Specimens
• Single pump test at a time

• Operating Voltage
• 230V AC

• Port Size
• 1 inch suction and 1 inch delivery

• Power Supply
• 230V AC, 50 Hz

• Resolution
• 0.01 LPH (flow), 0.01 kg/cm2 (pressure)

• Response Time
• Instantaneous

• Temperature
• 5C to 50C

• Test Range
• 0-2500 LPH

• Test Speed
• Variable, up to 2800 RPM

• Test Width
• 400 mm

• Usage
• Educational, Laboratory Equipment

• Equipment Type

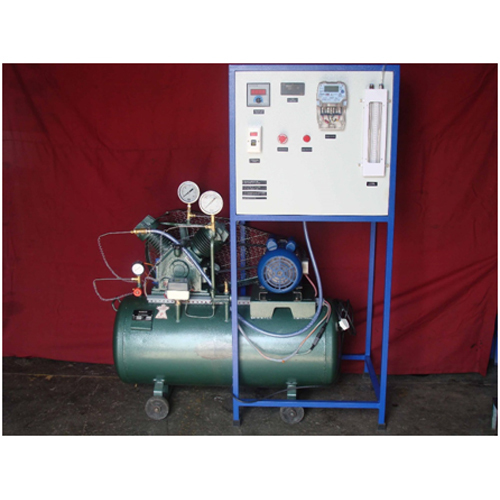

• Two Stage Air Compressor Test Rig

• Accuracy
• 1% of Full Scale

• Application
• Performance Testing and Study of Air Compressors

• Automation Grade
• Semi-Automatic

• Capacity
• 2-5 HP (standard), 300 Litre Receiver

• Control Mode
• Manual/Automatic Control Panel

• Display Type
• Analog and Digital (Panel Meter)

• Features
• Receiver tank with pressure relief, Intercooler, calibrated gauges, and temperature sensors

• Frequency
• 50 Hz

• Gas Pressure
• Up to 12 kg/cm2

• Interface Type
• Panel-mounted

• Machine Weight
• Approx. 200 kg

• Max Height
• 1200 mm

• Measuring Range
• 0-15 bar (Pressure Gauge)

• Mounting Type
• Rugged floor-mount

• Number of Specimens
• Single Specimen Testing

• Operating Voltage
• 230 V AC

• Port Size
• 1/4 inch BSP

• Power Supply
• 230 V AC, 50 Hz

• Resolution
• 0.1 bar

• Response Time
• <1 second

• Specimen Size
• N/A (Air as specimen)

• Temperature
• Ambient to 50C

• Test Range
• Up to 12 bar

• Test Speed
• 1450 RPM (Compressor Motor)

• Test Stroke
• Continuous

• Test Width
• 600 mm

• Usage
• Educational Lab Equipment/Test Rigs
